First visualization: Inspect data

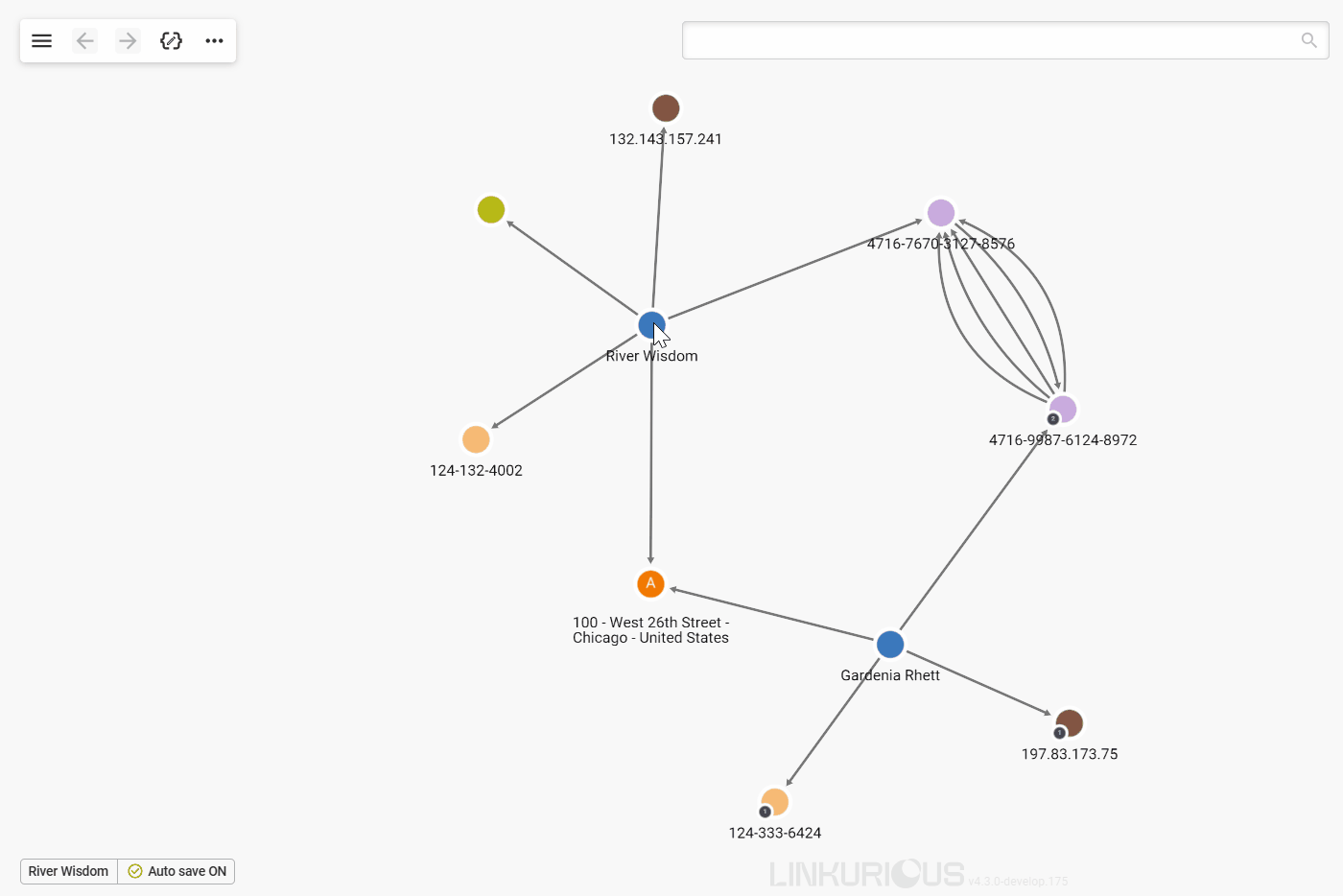

In order to view the different properties of a node, we click on it. Information immediately appears on the left side of the screen.

Here we can see that there is a node with the id #7. It has no caption and has a Person category. Below we can see the various properties associated with the node.

For example the node has a first_name property with the value Mordecai.

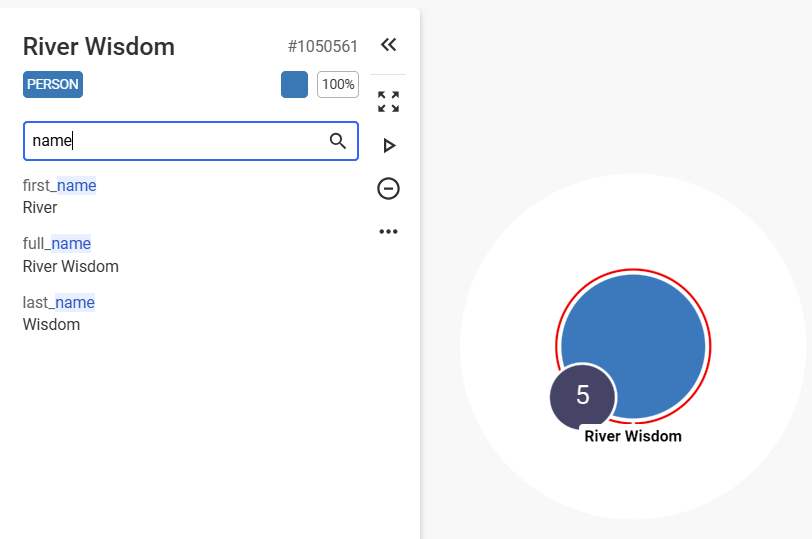

We can scroll down to see more properties or use the search bar to find a property.

Notice the number in the circular badge next to the node, it is the number of undisplayed edges.

You can inspect edges in the same manner.

Display the connections of a node

Time to find out about the particular edges of a node. The easiest way to get that information is to double-click on the node we are interested in. Here we are interested in Mordecai Robbeke.

Now we can see some nodes that are connected to Mordecai.

Notice the white halo around each node? All the nodes surrounded by the white halo are connected to the currently selected node (or nodes). In this case, all the nodes are connected to Mordecai Robbeke.

The lines between the nodes represent the edges. All the edges have a direction from one node to another (represented by an arrow).

If we click on a given edge, the properties of that edge will be displayed in the left panel.

Inspect data of a multiple selection

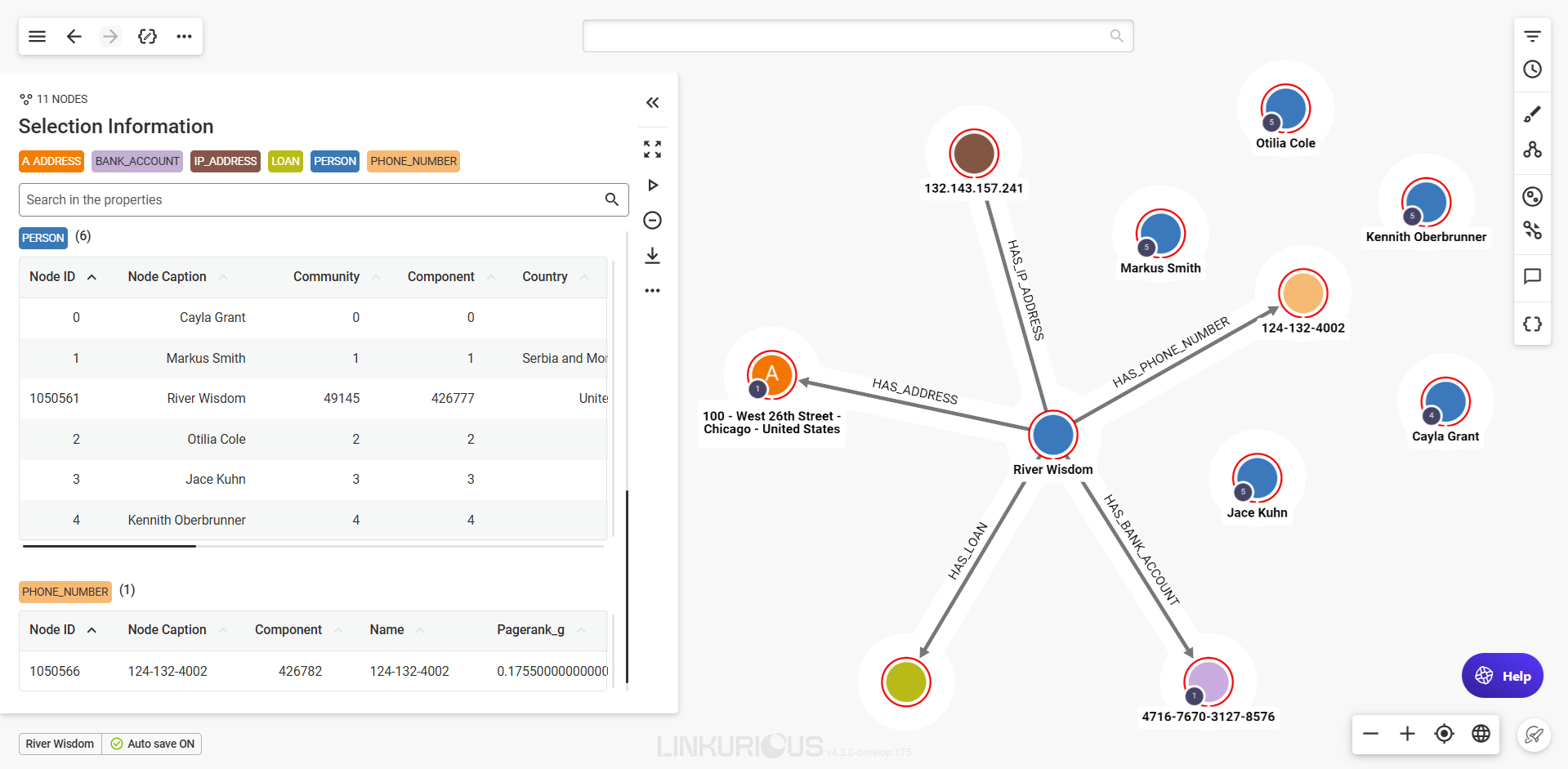

When you select multiple nodes or edges, the left panel will present their detailed properties in a table format for easy viewing.

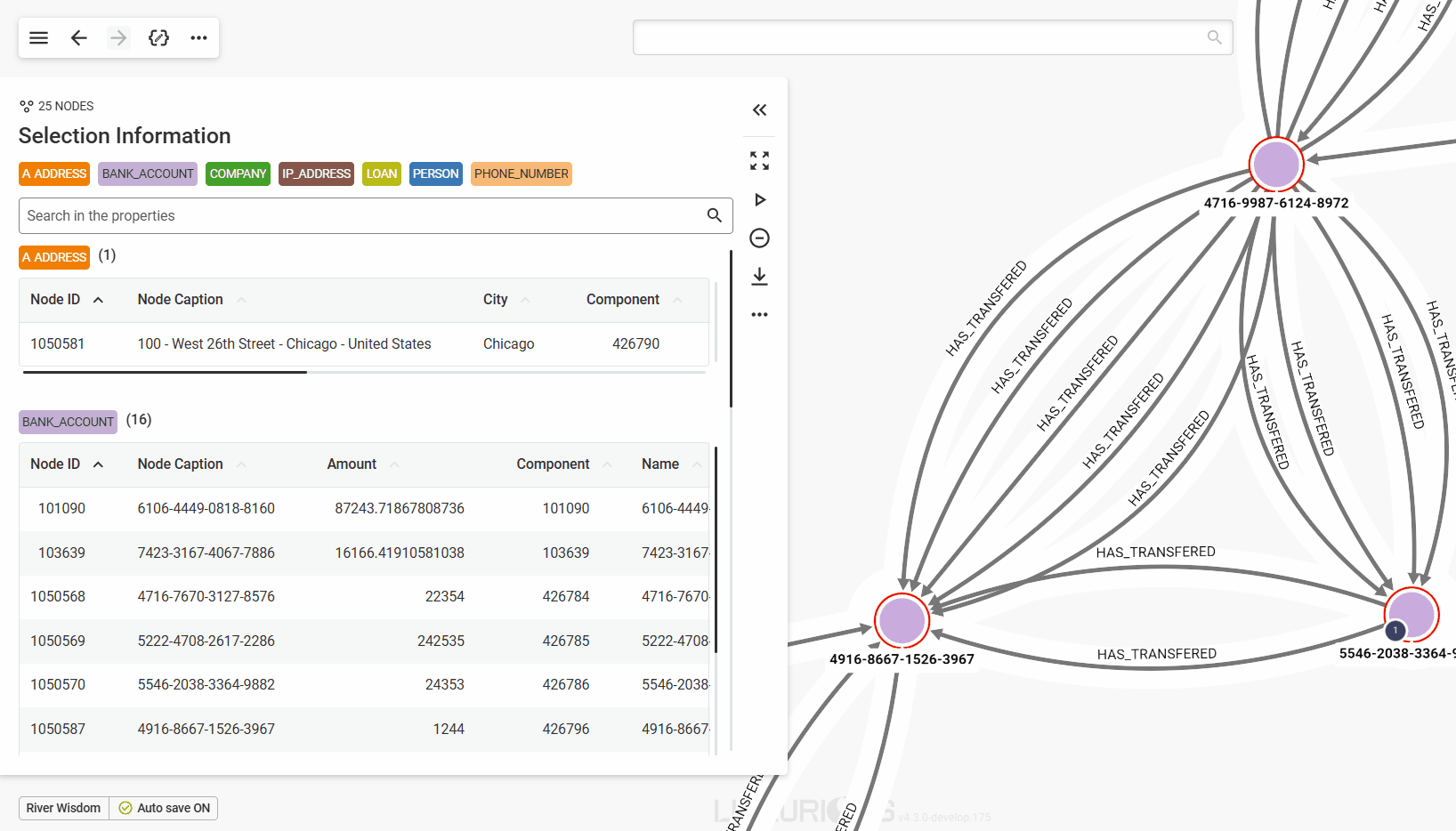

If your selection includes multiple node categories or edge types, each will be shown in its own separate table for clarity.

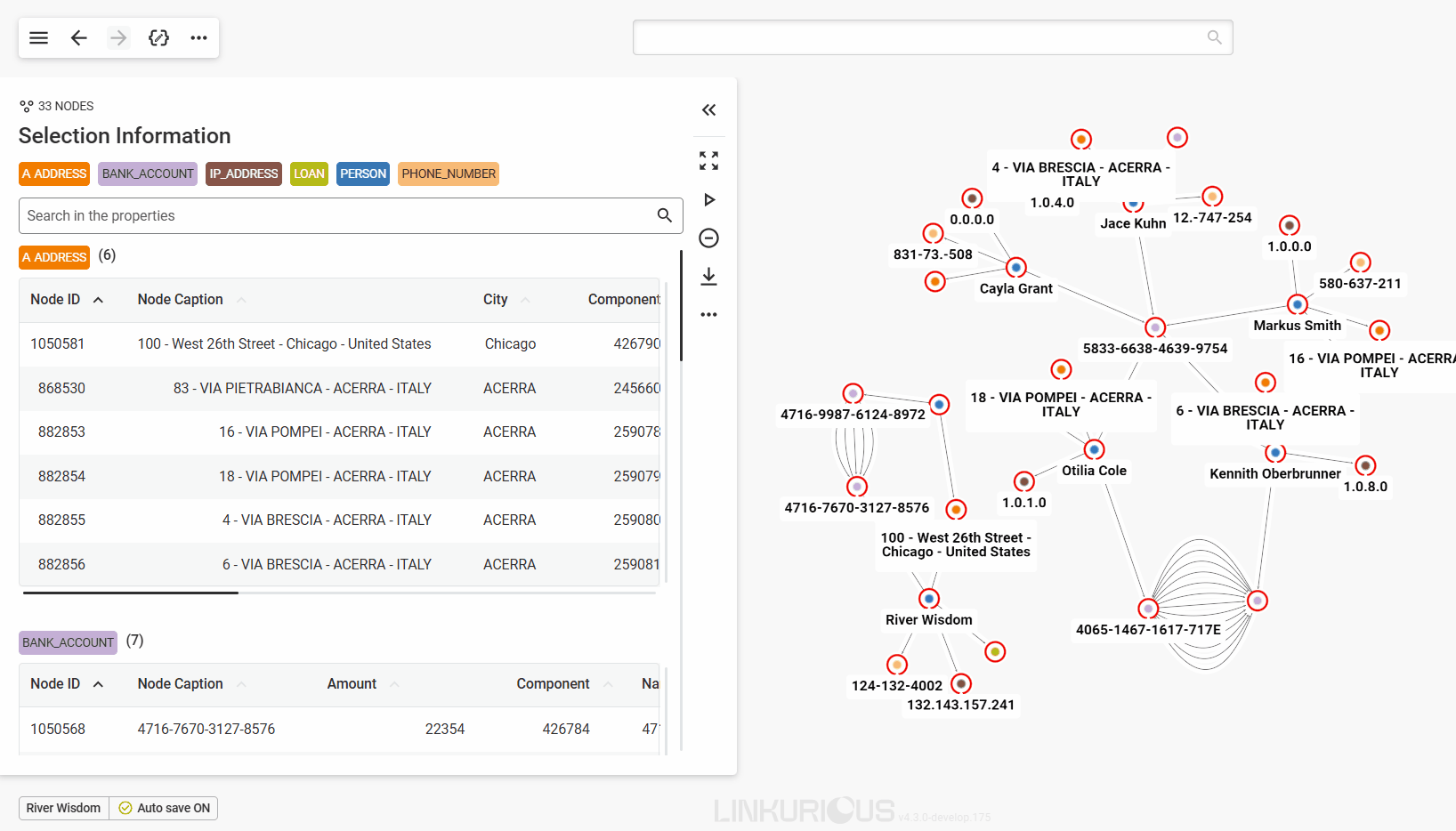

Use the page buttons to easily navigate through the table's pages.

For a more comfortable reading experience during your investigation, you can expand the left panel to full screen by clicking the 'Expand' arrow on the panel's edge.

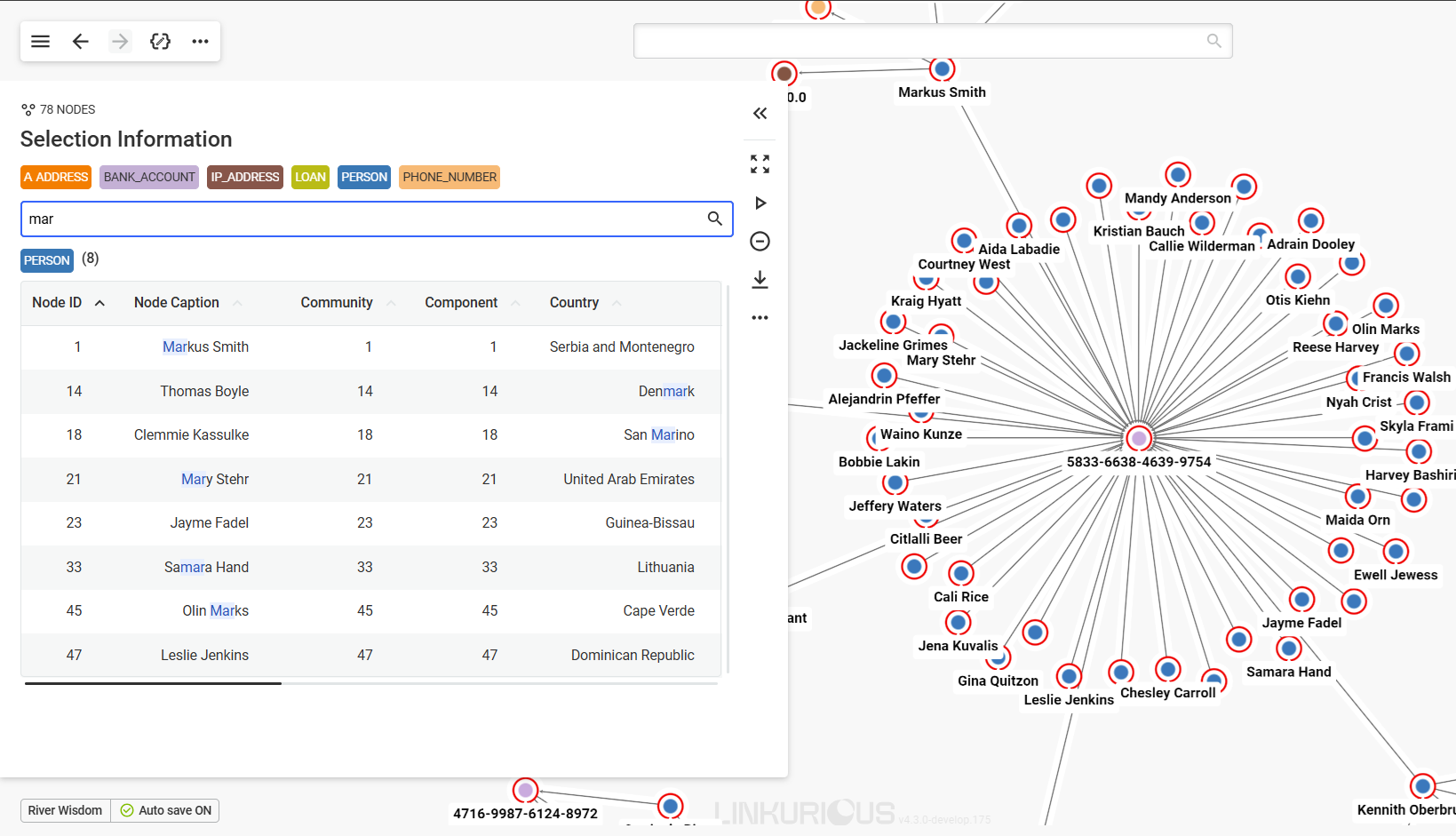

If you're looking for a specific value, simply type it into the search bar. Matching results will be filtered and highlighted, making it easy to spot what you need.

You can sort the results by any property available, in ascending or descending order.

You can learn more about selecting multiple nodes or edges in the Select nodes and edges section of this documentation.
